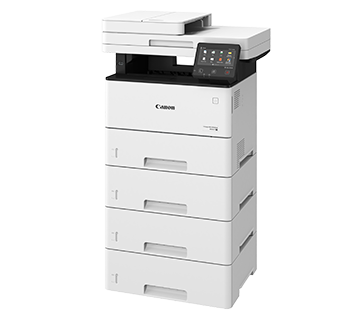

imageRUNNER 1643i II / 1643iF II
imageRUNNER 1643i II / 1643iF II
The imageRUNNER 1643i II and 1643iF II offer a wide range of features tailored to meet the demands of busy work groups. With easy navigation through an intuitive colour touch panel, seamless mobile connectivity and efficient digitisation, the multi-function devices help businesses maximise productivity.
| Machine Type | Monochrome A4 Laser Multifunctional |
| Core Function | iR 1643iF II: Print, Copy, Scan, Send and Fax iR 1643i II: Print, Copy, Scan and Send |
| Control Panel | 12.7 cm (5 inch) TFT LCD WVGA Colour Touch panel |
| Memory | Standard: 1.0 GB RAM |
| Storage | eMMC: 2 GB |
| Interface Connection | NETWORK: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n), Wi-Fi Direct Connection OTHERS: |
| Memory Media | USB Memory |
| Network Security | TLS 1.3, IPSec, IEEE802.1X authentication, SNMPv3, Firewall, Functionality (IP/MAC Address Filtering), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN |
| Document Security | Print Security (Secure Print, uniFLOW Secure Print*1), Scan Security (Encrypted PDF, Device Signature PDF/XPS), Send Data Security (Restricted E-mail/File send functions, Security Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History) |
| Paper Supply Capacity (A4, 80 gsm) | Standard: Paper Cassette: 550 sheet Multi-purpose tray: 100 sheet Maximum: 2,300 sheets (with PAPER FEEDER PF-C1x3) |
| Paper Output Capacity (A4, 80 gsm) | Standard: 150 sheets |
| Toner (Estimated Yield @ 5% Coverage) | Toner T06 Black: 20,500 impressions (A4) |
| Supported Media Sizes | Upper Cassette 1: Standard size: A4, B5, A5, A5R, A6 Custom size: Minimum 105.0 x 148.0 mm up to 216.0 x 355.6 mm Multi-purpose tray: |
| Supported Media Weights | Upper Cassette 1: 60 to 120 gsm Multi-purpose tray: 60 to 199 gsm Duplex: 60 to 120 gsm |
| Warm-up Time | From Power On: 14 Seconds or Less*2 From Sleep Mode: 4 Seconds or Less |
| Dimensions (W x D x H) | 480 x 464 x 452 mm |
| Installation Space (W x D) | 480 x 905 mm (With cassette open) |
| Weight | Standard: Approx. 20.0 kg (Including toner) |
| Print Speed (BW) | 1-sided: Up to 43/43 ppm (A4) 2-sided: Up to 36/36 ppm (A4) |
| Print Resolution (dpi) | 600 × 600 1,200 x 1,200 (equivalent) |
| Page Description Languages | Standard: UFR II, PCL6, PCL5 Adobe®PostScript®3™ (Optional iR1643i II) |
| Direct Print | Direct printing available from USB memory, LPR Supported file types: TIFF, JPEG, PDF and XPS (only LPR) |
| Printing from Mobile and Cloud Application | Apple AirPrint, Canon PRINT Business, Mopria and uniFLOW Online |
| Operating System | UFRII: Windows® 8.1/10/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.11 or later) PCL: Windows® 8.1/10/Server 2012/Server 2012 R2/Server 2016/Server 2019 PS: Windows® 8.1/10/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.11 or later) |
Copy
| Copy Speed | 1-sided: Up to 43/43 ppm (A4) 2-sided: Up to 36/36 ppm (A4) |
| First-Copy-Out Time (A4, BW) | Platen: Approx. 6.3 seconds or less ADF: Approx 6.4 seconds or less |
| Copy Resolution (dpi) | 600 x 600 |
| Multiple Copies | Up to 999 copies |
| Copy Density | Automatic or Manual (9 Levels) |
| Magnification | 25% – 400% (1% Increments) Preset reduction/enlargement: 25%, 50%, 70%, 81%, 86%, 100%, 115%, 122%, 141%, 200%, 400% |
Scan
| Type | 1 PDS |
| Document Feeder Paper Capacity | A4 – 50 sheets |
| Supported Media Sizes | Sheet media size: A4R, B5R, A5R, A6R Custom size: 105 × 128 mm to 215.9 x 355.6 mm |
| Scan Speed (ipm: BW/CL, A4) | Copy (600 dpi): 1-sided Scanning: 20 2-sided Scanning: 34 Send (300 dpi): |
| Scan Resolution (dpi) | Copy: up to 600 x 600 Send: (Push) up to 300 x 600, (Pull) up to 600 x 600 Fax: up to 400 x 400 |
| Pull Scan Specifications | ScanGear MF For both TWAIN and WIA |
Send
| Destination | E-mail/Internet FAX (SMTP), SMB, FTP |
| Address Book/Speed dials | LDAP (50)/Local (300)/Speed dial (281) |
| Send Resolution (dpi) | Push: 192 x 204 (I-FAX), 300 x 300 (email/SMB/FTP) Pull: 50 x 50, 75 x 75, 150 x 150, 200 x 200, 300 x 300, 400 ｘ 400, 600 x 600 |
| Communication Protocol | File: FTP (TCP/IP), SMB 3.0 (TCP/IP) Email/iFax: SMTP (send), POP3 (recieve) |
| File Format | TIFF, JPEG*4, PDF (Compact, Searchable, Encrypted, Digital Signature) |
Fax (iR1643iF II only)
| Maximum Number of Connection Lines | 1 |
| Modem Speed | Super G3: 33.6 kbps G3: 14.4 kbps |
| Compression Method | MH, MR, MMR, JBIG |
| Resolution (dpi) | 400 x 400 (Ultrafine), 200 x 400 (Superfine), 200 x 200 (Fine/Photo), 200 x 100 (Normal) |
| Fax Memory | Up to 512 pages |
| Speed Dials | Max. 281 |
| Group Dials / Destinations | Max. 299 dials |
| Sequential Broadcast | Max. 310 addresses |
Environmental
| Power Source | AC 220-240V: 3.9A, 50/60Hz |
| Power Consumption | Maximum: Approx. 1420 W or less |
Paper Supply Options
| Paper Feeder PF-C1 | Paper Capacity: 550 sheets (80 gsm) Paper Size: A4, B5, A5, A5R, A6, Custom size: 105.0 x 148.0 mm to 216.0 x 355.6 mm Dimensions (W x D x H): 480 x 464 x 842 mm*5 Weight: Approx. 4.0 kg |
Other
| Optional Accessories | Copy Card Reader-F1 Copy Card Reader Attachment-J1 PS Printer Kit-CB1 AS Barcode Printing Kit-E1 Copy Control Interface Kit-C1 |
