Description

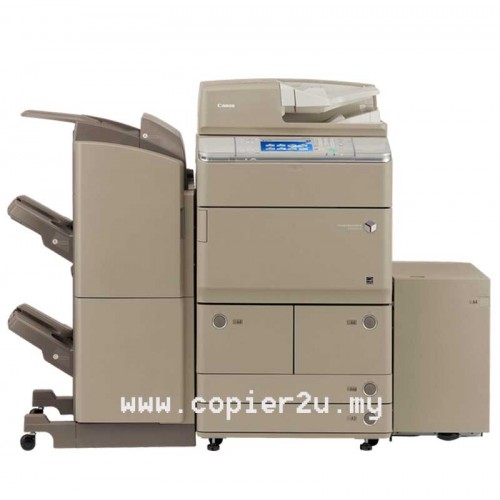

Canon Photocopier ImageRUNNER ADVANCE 6055
Advanced monochrome printing at 55 pages per minute
The Canon Photocopier ImageRUNNER ADVANCE 6055 series supports your business environmentally with the innovative use of bio-plastics and recycled material, elimination of lead and halogens, lower power consumption and compliance with industry standard RoHS and Energy Star standard.
- Direct USB support for print and scan
- Output speed: 55ppm (mono)
- Multi-function network device: copy, print, scan with send capability
Full Specifications
Higher productivity
With multiple new key technologies built into the ImageRUNNER ADVANCE 6055 series, not just only high-speed print and copy but 4-line Fax, print from USB, On-The-Fly paper and toner replacement, higher Hard Disk capacity. ImageRUNNER ADVANCE 6055 series allows users to spend lesser time at the machine.
Intuitive user interface
The new ImageRUNNER ADVANCE 6055 series interface provides you with a more pleasant intuitive navigation experience on an 8.4″ full color, high-resolution TFT touch screen. An optional 10.4″ screen for better accessibility with tilt and swivel capability allows users to adjust interface to an even more comfortable preference.
Environmental friendly
The ImageRUNNER ADVANCE 6055 series was designed specifically for low carbon dioxide emission. This is lower by 30% compared to previous models. In addition, the ImageRUNNER ADVANCE 6055 series consume 1.5W or less power in standby mode allowing you to save more energy and costs for your business.
Specifications for imageRUNNER ADVANCE 6055
| Type | Desktop | |
| Maximum Original Size | A3 | |
| Copy Sizes | Cassette 1, 2: | A4 |
| Cassette 3, 4: | A3, A4, A4R, A5R Custom Size 139.7 x 182mm to 297 x 487.7mm | |
| Multi Purpose Tray: | A3, A4, A4R, A5R Custom Size 100 x 148mm to 297 x 487.7mm | |
| Resolution | Reading: | 600 x 600dpi |
| Copying: | 600 x 600dpi | |
| Printing: | 1200 x 1200dpi (text / line only) | |
| Copy / Print Speed | A4: | 55ppm (Black & White) |
| A3: | 32ppm (Black & White) | |
| Magnification | Copy Ratio: | 25 – 400% |
| First Copy Out Time | 3.3 seconds or less | |
| Warm-Up Time | 38 seconds or less | |
| Multiple Copies / Prints | 1 to 9,999 copies | |
| Paper Weight | Cassette: | 52 to 220gsm |
| Multi Purpose Tray: | 52 to 256gsm | |
| Paper Capacity | Cassette 1, 2: | 1,500 sheets x 2 cassettes (80gsm) |
| Cassette 3, 4: | 550 sheets x 2 cassettes (80gsm) | |
| Multi Purpose Tray: | 100 sheets (80gsm) | |
| Paper Deck: | 3,500 sheets (80gsm) | |
| CPU | 1.2GHz | |
| Memory | Standard: | 1.5GB RAM |
| Maximum: | 2GB RAM | |
| Hard Disk Drive | Standard: | 80GB |
| Maximum: | 250GB | |
| Interface | Ethernet (1000BaseT / 100Base-TX / 10Base-T) Wireless LAN (IEEE802.11b/g, Optional), USB 2.0 | |
| Power Supply | 220 – 240V AC, 50 / 60Hz, 10A | |
| Power Consumption | Max. 2.2kW or less; when in sleep mode 1.5W or less | |
| Dimensions (H x W x D) | 1,040 x 645 x 770mm (with platen cover) 1,220 x 645 x 770mm (with DADF) 1,252 x 1,481 x 770mm (with DADF and Upright Control Panel) | |
| Weight | Approx. 237kg (with toner bottle and DADF) | |
| Print Specification | ||
| PDL | UFRII (Standard), PCL5e / 6 (optional), Adobe PostScript 3 (optional) | |
| Resolution | 1200 x 1200dpi (text / line only) | |
| Memory | 2GB (Uses Main unit RAM) | |
| Hard Disk | Standard: | 80GB |
| Maximum: | 250GB | |
| CPU | Canon Custom Processor, 1.2GHz (Uses Main unit CPU) | |
| PS Fonts | Roman 136 | |
| PCL Fonts | Roman93, Bitmap10, OCR2 | |
| Supported OS | PCL: | Windows 2000 / XP / Server 2003 / Vista / Server 2008 / Win7 |
| Adobe PostScript 3: | Windows 2000 / XP / Server 2003 / Vista / Server 2008 / Win7, Mac OSX 10.4.9 or later | |
| UFR II | Windows 2000 / XP / Server 2003 / Vista / Server 2008 / Win7, Mac OSX 10.4.9 or later | |
| Mac-PPD | Mac OS 9.1 or later, Mac OSX 10.2.8 or later | |
| Interface | Ethernet (1000Base-T / 100Base-TX / 10Base-T) Wireless LAN (IEEE802.11b/g, Optional), USB 2.0 | |
| Network Protocol | TCP / IP (LPD / Port9100 / WSD / IPP / IPPS / SMB / FTP), IPv6, IPX / SPX (NDS, Bindery), AppleTalk | |
| Pull Scan | Network TWAIN Driver (75 to 600dpi 24 bits colour / 8 bits grayscale / 2 bits Black & White) | |
| Send Specification (Standard) | ||
| Scan Speed (A4, 300dpi) | Black & White: | 120ipm |
| Colour: | 85ipm | |
| Resolution | 600 x 600dpi | |
| Destinations | E-Mail / Internet FAX (SMTP), PC (SMB, FTP), iWDM, WebDAV | |
| Address Book | LDAP, Local (Max. 1800) | |
| File Format | TIFF, JPEG, PDF, XPS, High compression PDF / XPS, PDF / A-1b, Optimize PDF for Web | |
Accessories for imageRUNNER ADVANCE 6055
| Optional Accessories | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| • | imagePASS-U1
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| • | Universal Send Advanced Feature Set-E1
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| • | Universal Send Security Feature Set-D1
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| • | Duplex Color Image Reader Unit-C1
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| • | Paper Deck Unit-D1
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| • | Paper Deck Unit-A1
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| • | Staple Finisher / Booklet Finisher-E1
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| • | Document Insertion Unit-L1 / Folding Unit-H1
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| • | Other Optional Accessories
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
