Description
‘

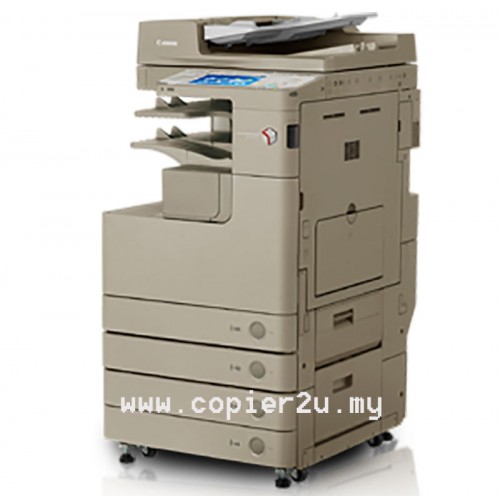

Canon Photocopier ImageRUNNER ADVANCE 4045 New!
Simplicity. Advanced.
The Canon Photocopier ImageRUNNER ADV 4045 New is an integrated multi-function device that is designed to meet the professional business demands of today.
- Direct USB support for print and scan
- Output speed: 45ppm (mono)
- Multi-function network device: copy, print, scan with send capability
New Quick Menu interface
Designed with intuitive simplicity in mind, the new Quick Menu user interface makes it easy for users to perform and complete their tasks. Complex functions incorporating multiple tasks may be customized into a single one-touch button according to individual requirements, while the context sensitive tutorial menu brings everyone up to speed.
Total system integration
The imageRUNNER ADVANCE integrates seamlessly with office environments to enhance productivity right from the first day. Supporting back office systems such as Microsoft SharePoint™, the network-ready multi-function device also facilitates easy document sharing across users via the Advanced Box. Built into each imageRUNNER ADVANCE device is Canon’s intelligent MEAP platform that allows embedded applications such as uniFLOW, eCopy, third-party and even Cloud solutions for best practices, compliance, security, and workflow enhancements.
Multi conversion formats
The imageRUNNER ADVANCE multi-function device handles a wide variety of file formats with ease. From the standard PDR compact, searchable PDF/XPS and Adobe Reader Extensions PDF, just about every major softcopy format is catered for. Files can be converted and shared easily and efficiently across multiple destinations through the Universal SEND function, improving work synergy at the touch of a button.
Specifications for imageRUNNER ADVANCE 4045
| Type | Desktop | |
| Maximum Original Size | A3 | |
| Copy Sizes | Cassette 1: | B4, A4, A4R, B5, B5R, and A5R |
| Cassette 2: | A3, B4, A4, A4R, B5, B5R, A5R Custom Size 139.7 x 182mm to 297 x 431.8mm With installation of Envelope Feeder Attachment, envelopes can be used in cassette 2 | |
| Multi Purpose Tray: | A3, B4, A4, A4R, B5, B5R, A5R, Custom size (99 x 148mm to 297 x 431.8mm), and Envelopes | |
| Resolution | Reading: | 600 x 600dpi |
| Copying: | 1200 x 600dpi (interpolated) | |
| Printing: | 1200 x 1200dpi (Text / Line only) | |
| Copy / Print Speed | A4: | 45ppm |
| A3: | 22ppm | |
| Magnification | Copy Ratio: | 25 – 400% |
| First Copy Time | 3.8 seconds or less | |
| Warm-Up Time | 38 seconds or less | |
| Multiple Copies / Prints | 1 to 999 copies | |
| Paper Weight | Cassette: | 60 to 128gsm |
| Stack Bypass: | 52 to 220gsm | |
| Paper Capacity | Cassette 1, 2: | 550 sheets x 2 cassettes (80gsm) |
| Cassette 3, 4: (Optional) | 550 sheets x 2 cassettes (80gsm) | |
| Multi Purpose Tray: | 80 sheets (80gsm) | |
| Paper Deck: | 2,700 sheets (80gsm) | |
| CPU | 1.2GHz | |
| Memory | Standard: | 1.256GB RAM |
| Maximum: | 1.768GB RAM | |
| Hard Disk Drive | Standard: | 80GB |
| Maximum: | 250GB | |
| Interface | Ethernet (1000BaseT / 100Base-TX / 10Base-T) Wireless LAN (IEEE802.11b/g, Optional), USB2.0 | |
| Power Supply | 220 – 240V AC, 50 / 60Hz | |
| Power Consumption | 1.5kW or less | |
| Toner (Estimated Yield @ 6% Coverage) | Black-and-White: | 34,200 |
| Drum Yield | Black-and-White: | 168,000 |
| Dimensions (W x D x H) | 902 x 565 x 708mm (Including the DADF-AG1) | |
| Weight | Approx. 77.9kg (Including the DADF-AG1) | |
| Print Specification | ||
| PDL | UFRII (Standard), PCL 5c / 6 (Optional), Adobe PostScript 3 (Optional) | |
| Resolution | 1200 x 1200dpi (text / line only) | |
| Memory | Standard: | 1.256GB RAM |
| Maximum: | 1.768GB RAM | |
| Hard Disk | Standard: | 80GB |
| Maximum: | 250GB | |
| CPU | Canon Custom Processor, 1.2GHz (Uses Main unit CPU) | |
| PS Fonts | Roman 136 | |
| PCL Fonts | Roman93, Bitmap10, OCR2 | |
| Supported OS | PCL: | Windows 2000 / XP / Server2003 / Vista / Server2008 / Win7 |
| Adobe PostScript 3: | Windows 2000 / XP / Server2003 / Vista / Server2008 / Win7, Mac OSX (10.4.9 or later) | |
| UFR II | Windows 2000 / XP / Server2003 / Vista / Server2008 / Win7, Mac OSX (10.4.9 or later) | |
| Mac-PPD | Mac OS 9.1 or later, Mac OSX (10.2.8 or later) | |
| Interface | Ethernet (1000BaseT/100Base-TX/10Base-T) Wireless LAN (IEEE802.11b/g, Optional), USB 2.0 | |
| Network Protocol | TCP / IP (LPD / Port9100 / WSD / IPP / IPPS / SMB / FTP), IPv6, IPX / SPX (NDS, Bindery), AppleTalk | |
| Pull Scan | Network TWAIN Driver (75 to 600 dpi 24bit color / 8bit grayscale / 2bit Black & White) | |
| Send Specification (Standard) | ||
| Scan Speed (A4, 300dpi) | Black & White / Color: | 51ipm |
| Scan Resolution | 100 x 100dpi, 150 x 150dpi, 200 x 100dpi, 200 x 200dpi, 200 x 400dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi Additional memory upgrade is required for 200 x 400dpi, 400 x 400dpi or 600 x 600dpi scanning. | |
| Destinations | E-Mail / Internet FAX (SMTP), PC (SMB, FTP), iWDM, WebDAV | |
| Address Book | LDAP, Local (Max.1800) | |
| File Format | TIFF, JPEG, PDF, XPS, High Compression PDF / XPS, PDF / A-1b, Optimize PDF for Web | |
